capacitor metallized MPP polypropylene film MPET polyester film manufacturer

FOB Reference Price:Get Latest Price
US $6-12 / Kilograms | 1 Kilogram/Kilograms (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
metallized film
material:
polypropylene film polyester film
Feature:
Water Soluble
Usage:
capacitors
Model Number:
MPP/S-PP/RPP/RRPP,MPPA,MPPAZH,MPPAF
film thickness:
3.6um-12um
film width:
14mm-620mm
density:
0.91g/cm3
tensile strength:
>=2300Mpa
property:
good tensile strength film
Supply Ability
Supply Ability:
100 Ton/Tons per Month
Packaging & Delivery
Packaging Details
pallet
Port
shanghai
Lead Time :
12work days

A) Different type  films



1.Aluminum metalized polypropylene film.
2.Aluminum-Zinc alloy metalized polypropylene film.
3.Aluminum-Zinc alloy metalized polypropylene film with heavy edge.

4.Aluminum metalized polyester film.
5.Aluminum-Zinc alloy metalized polyester film.
6.Aluminum-Zinc alloy metalized polyester film with heavy edge.

film structure.jpg

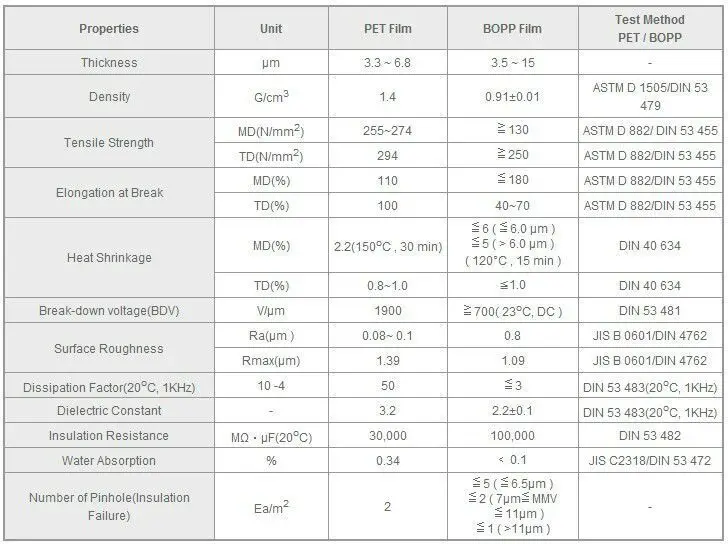

B) Specification




Cores



Material:Plastic

Width:Film Slit Width +/-0.2mm

Inner Diameter:75mm+1.0mm/-0.5mm





Roll Outer Diameter



For slit widths 4.0mm up:155+6/-15mm

For slit widths 10.0mm up:180+8/-18mm

For slit widths 25.0mm up:240+10/-20mm

For slit widths 50.0mm up:320+10/-40mm





ROLLS



Film is wound on solid cores,with the metallized layer inside.

Rolls are wound up to the specific outer diameter.

The loose end of film is held in place by a closing sticker.

Rolls are always packed in pairs.

There is a plastic foam between te rolls to protect the electrode side.





C) Package

1.The piled rolls are packed in plastic bad abd heat-sealed with esiccants after vacuum  removals

2.Labels inside the bages mark film class,type,thickness,width,free margin width and resistance.

3.The bags are packed in carton cases.

4.The carton cases are packed in wooden cases or reinforced carton.



D) Storage



1.Metalized film should be stored in its original packing until use.The temperature should be  controlled to 5-35 oC and humidity less than 85%  RH.



2.On exposure to moisture,the thin metalized layer is likely to be easily oxidized.Therefore,after the packing is opened,the rolls should be used as soon as possible.



3.It is recommended that the opened rolls be stored in temperature conditions of 15-25 oC



4.Metalized film kept sealed in the original packing and stored as described above is guaranteed according to the following conditions



5.Al metalized film:12 months from the delivered date



6.Al/Zn Alloy metalized film:As Zn is relatively unstable,preservation period depends on the resistance of the film



7.10 Ohms or less 6 months(from delivery date)



8.10 to 15 Ohms 3 months(from delivery date)



9.15Ohms 1months(from delivery date)



  E) Why choose  Anhui Safe  Company?

1.)As a national high-tech enterprise,we have 22 years exprience in capacitor film industry,25 industry patents and a number of invention patents.



2.To ensure the product quality and consistency,we have obtained the ISO 9001 quality system certificate

and CQC product certificate.



3.)We have modern factories and purification plant,the world first-class production equipment and the technical team consisted of a number of experts.



We are committed to become a world-class supplier!

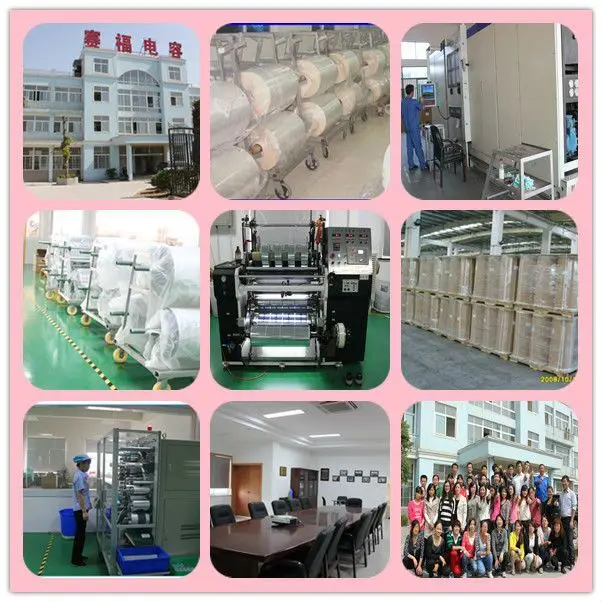

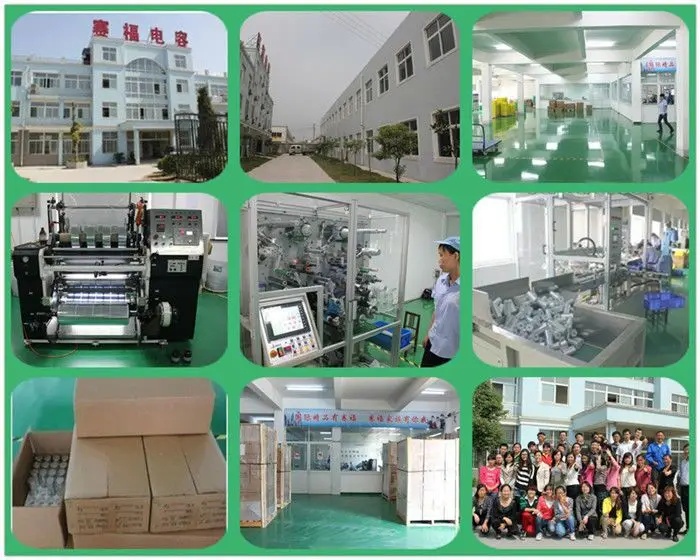

  F) Factory     photo

 .jpg






Pls don't hesitate  to contact me: anniel(at)anhuisafe.com  SKYPE:anniel2472

 More information you can visite our website: www.capacitorfilm.com

                                       or  www. anhuisafe.com
