CBB65 Air Conditioner Parts Motor Run Capacitor

FOB Reference Price:Get Latest Price
US $0.79-13.35 / Pieces | 50 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Air Conditioner Parts, Compressor Capacitor
Application:
Industrial
Certification:
CQC
Place of Origin:
Anhui, China (Mainland)
Brand Name:
SaiFu
Model Number:
CBB65
Supply Ability
Supply Ability:
300000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
air conditioner capacitor with standard export cartons
Port
Shanghai/Ningbo
Lead Time :
3~7 days

Specifications

1,China professional capacitor manufacturer
2,Good Quality with good price
3,CQC Certificate.

 CBB65 Air conditioner compressor capacitor



1)Rated voltage:200V, 250V, 370V, 400V, 440V, 450V

2)The motor capacitor used in air-condition and high power illuminator



Dimensional specification (mm):



Rated voltage(VAC)

Nominal capacitance(μF)

Size(mm)

D

H

200,250,370,

400,440,450

3,4,5,7.5,10,12.5,15,17,20,22.5,

25,30,35,40,45,50,55,60,70,80,100,

25+5, 30+5, 35+5, 50+5, 60+5, 70+5, 80+5…

40,45,50,55,

60,63.5,

52*32,71*45

60,65,70,75,80,85,90,95,100,105,110,115,

120,125,135,138





Features:



The capacitor takes heavy-edge metallized Al/Zn film as electrodes and dielectric. The elements are tight winded by high-velocity winders and canned in aluminum cases. Refined castor oil is adopted as impregnation agent treated in vacuum and high temperature condition. Those make a more reliable performance and longer lifespan for a capacitor. Meanwhile the second generation of mechanical anti-explosion design is selected as blast-proof secure measure for our capacitors. The reliability is more affirmatively enhanced.



Applications:



Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for family air conditioners and high power illuminators for the sake of power factor compensation.



Technical Specifications:

Standard: IEC 60252-1:2001

Climate type:40/70/21 or 40/85/21Capacitance tolerance:± 5%I.R:≥3000S(MΩ·µF)Dielectric dissipation factor:tgδ≤0.002 (50Hz~100Hz)



Application requirements:

Altitude:≤2000mResidual voltage while loading: less than 10% of rated voltage.Allowed maximum voltage: less than 1.1 times of rated voltagePermissible maximum current: less than 1.3 times of rated current.



Certifications:

initpintu_

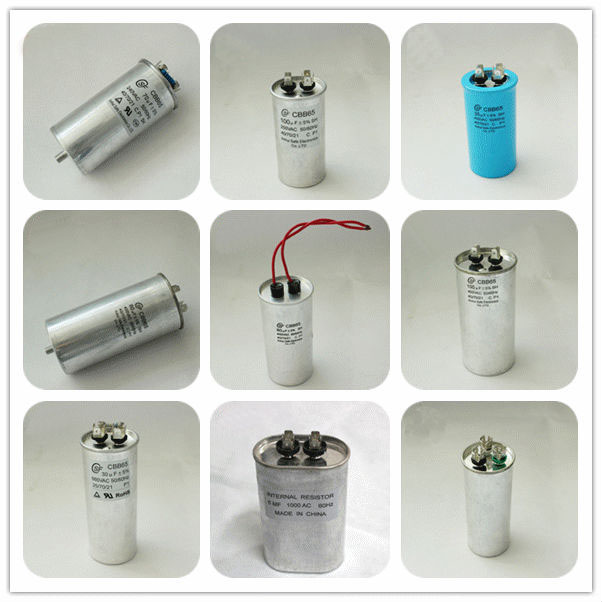

Product Infomations:

54

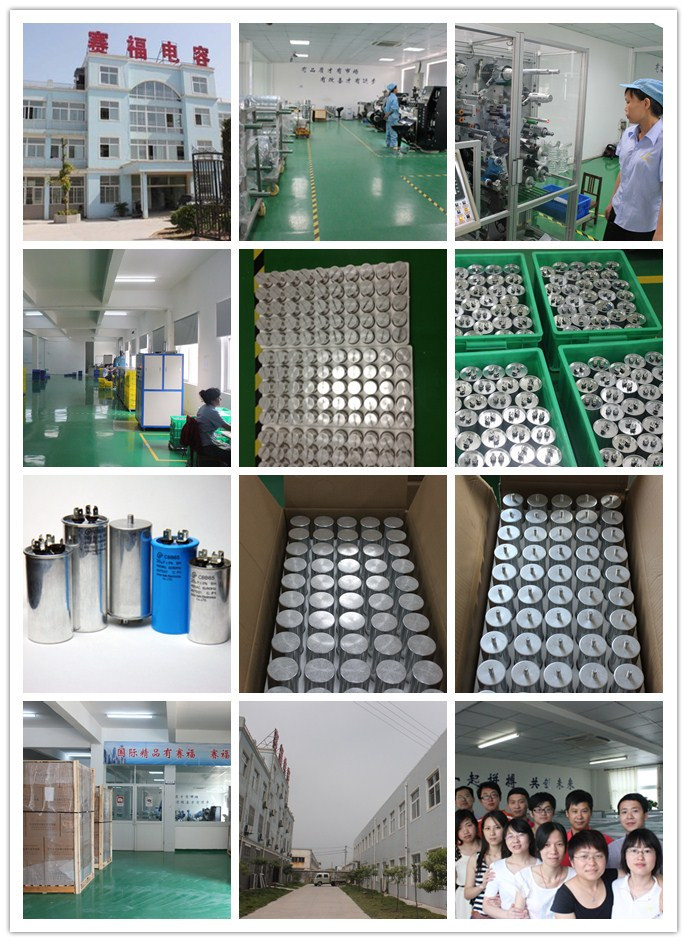

Company Informations:

.jpg

Welcome to visit our website: www.capacitorfilm.com  .we will be always stand by your side and offer you our best services .
