electric fans capacitor/CBB61 AC motor capacitor 13uf

FOB Reference Price:Get Latest Price
US $0.1-1 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
30000 Piece/Pieces per Day
Port:
Shanghi /Ningbo
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Anhui, China (Mainland)
Brand Name:
CSF/ SaiFu cbb61 capacitor
Model Number:
cbb61 capacitor
Type:
Polypropylene Film Capacitor
Application:
AC / Motor
Package Type:
Through Hole
Capacitance:
1-16uF
Rated Voltage:
200VAC~660VAC
Operating Temperature:
-40/85/21
cbb61 capacitor filling:
Resin
cbb61 capacitor Operating Life:
Class B,Class C
cbb61 capacitor Security Level:
P0,P2
cbb61 capacitor Case:
Plastic
cbb61 capacitor Standard:
IEC 60252 GB/T 3667
Factory ofcbb61 capacitor:
Anhui Safe Electronics Co., Ltd
Material of cbb61 capacitor:
metallized polypropylene film
temperature of cbb61 capacitor:
-40/70/21 40/85/21
Capacitance Tolerance of capacitor:
+/-5%
Certificates of cbb61 capacitor:
ISO9001, SGS, CQC
Packaging & Delivery
Packaging Details
CBB61 fan Capacitor International and Professional Standard of Package
Delivery Time
7-15 days after order

Specifications

CBB61 AC motor capacitor 13uf
1.Speciallized in fan capacitor for 23 years
2.ISO9001,CQC,SG
3.Top Production line

                       electric fans capacitor/CBB61 AC motor capacitor 13uf

Specifications of ac motor capacitor



CBB61 capacitor takes heavy edge metalized Al/Zn film as electrodes and dialectric. It is imprenated with flame-redardant epoxy resin and canned cubic ABS or PBT plastic case with chracteristiccs of small size, reliable performance and long endurance.



Features of ac motor capacitor



Model of CBB61 capacitor

CBB65

CBB60

CBB61

Material of  CBB61 capacitor

Metalized polypropylene

Metalized polypropylene

Metalized polypropylene

Filling of  CBB61 capacitor

Oil

Resin/Oil

Resin

Can of CBB61 capacitor

Aluminum

Plastic/Aluminum

Plastic

Capacitance range of CBB61 capacitor

3~120μF

4~30μF

1~16μF

Voltage range of CBB61 capacitor

200-660VAC

200-660VAC

200-660VAC

Security level of CBB61 capacitor



P1/P2





P0/P2



P0/P2



Anticipated operating life of CBB61 capacitor



Class B  Class C



Standard of  CBB61 capacitor



GB 3667  ,   IEC 60252   ,  IEC 61048/61049

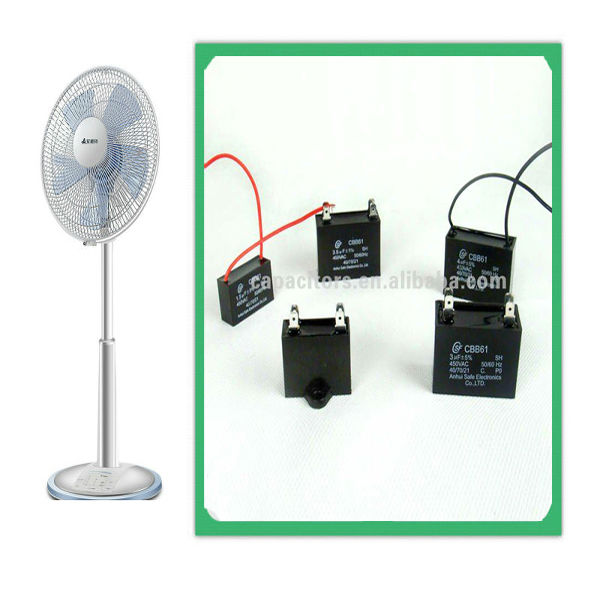

Applications of ac motor Capacitor



 Broadly applied to AC single-prase motors at 50Hz or 60Hz for electric fans and exhaust fans.

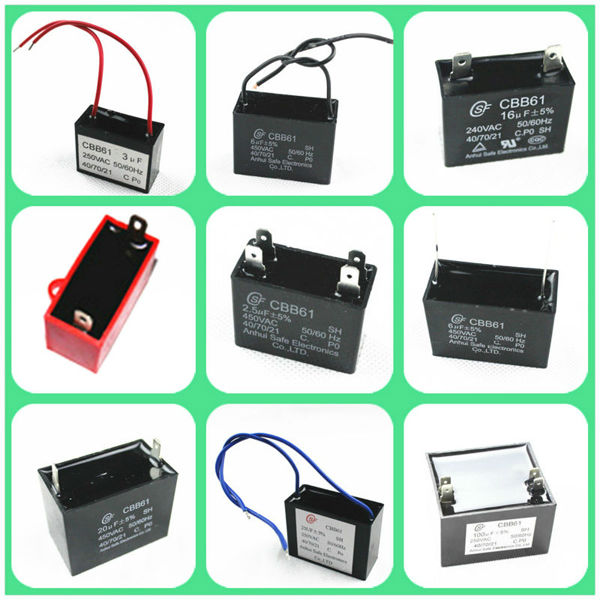

Types of ac motor Capacitor







Certificates of Our Factory







Why Choose Us



1. As a national high-tech enterprise,we have 22 years experience in capacitor industry,25 industry patents and a number of invention patents.

2.To ensure the product quality and consistency,we have obtained the ISO9001 Quality system certificate and CQC product certificate.

3. We have modern factories and purification plant, the world first-class production   equipment and the technical team consisted of a number of experts.

 We are commited to be top manufacturer in the world.

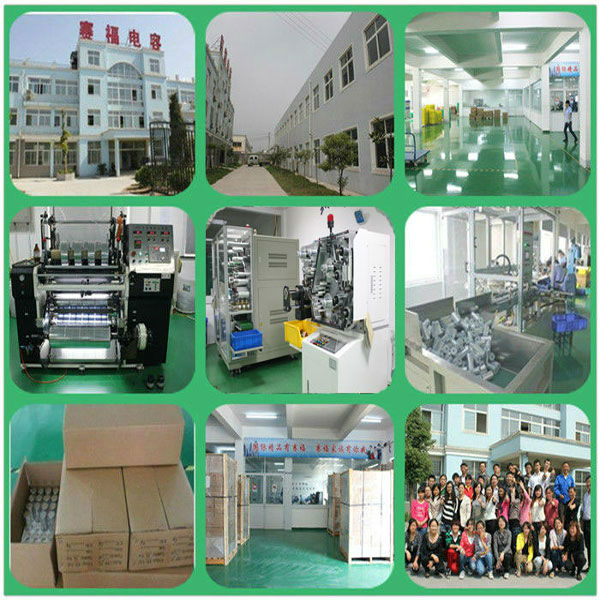

Factory Show





Improving All the Time.

Waiting for you :www.capacitor film.com

                     www.anhuisafe.com
