Quick Details

  • Place of Origin: Anhui, China (Mainland)
  • Brand Name: SaiFu,CSF
  • Model Number: CBB65 CAPACITOR
  • Type: Polypropylene Film Capacitor
  • Application: Air Conditioner
  • Package Type: Through Hole
  • Capacitance: 2uF-120uF
  • Rated Voltage: 200VAC~630VAC
  • Operating Temperature: 40/85/21
  • Cbb65 Reference standards: IEC60252-1
  • Cbb65 Class of safety protection: P2
  • Cbb65 Capacitance tolerance: +/-5%
  • Cbb65 Application: AC / Motor capacitor
  • Cbb65 Filling for CBB65: oil Capacitor
  • Cbb65 Factory: Anhui Safe Electronics Co.,LTD
  • Cbb65 Class of operation: ClassB

Packaging & Delivery

Packaging Details export cartons for High Quality Motor Running Capacitor CBB65 Air conditioner Capacitor CBB65

High Quality Motor Running Capacitor Air conditioner Capacitor CBB65





Cbb65 Sh Motor Run Capacitor details:

1. Cbb65 Capacitor is widely applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency power.



2. Cbb65 capacitor is used for air conditioner, refrigerators, compressor,etc.



3. Cbb65 capacitor is a explosion-proof capacitor, so the capacitor is more safe.



4. Cbb65 capacitor has self-healing property, high stability and reliability.



Technical Data for High Quality SH CBB65 Metallized film Capacitor:



Cbb65 Capacitor Product typePolypropylene Film Capacitor
Cbb65 Capacitor Climatic category40/85/21
Cbb65 Capacitor Class of operationClass B(10,000H)
Cbb65 Capacitor Class of safety protectionP2
Cbb65 Capacitor Voltage range200-660VAC
Cbb65 Capacitor Capacitance range2-120μF
Cbb65 Capacitor Capacitance tolerance±5% or according to customers' requests
Cbb65 Capacitor Rated frequency50Hz/60Hz
Cbb65 Capacitor Dissipation factor20X10-4(100Hz,20℃ )
Cbb65 Capacitor Test voltage terminal to terminal UTT2Un for 2seconds
Cbb65 Capacitor Test voltage terminal to case UTC(2Un +1000)VAC or 2000VAC - 50Hz for 60seconds
Cbb65 Capacitor Insulation Resistance 3000MΩ.μF (100Hz,  20℃, 60seconds )



The size information of CBB65 Motor Run Capacitor



Capacitor Rated voltage(VAC)Nominal capacitance(μF)TerminalSize

200,250,300,370,

400,440,450,500,

550,600,630,660

1,2,3,4,5,7.5,10,12.5,

14,17,20,22.5,25,30,40,

45,50,55,60,70,80,100,120

2*2,

2*4,

4*4,

2*3*4

Φ40*60, Φ40*70, Φ45*70,

 Φ45*75, Φ50*85, Φ50*100

Φ50*125, Φ60*125, Φ63.5*125

Note: Other specifications, size and terminal outside table are negotiable.

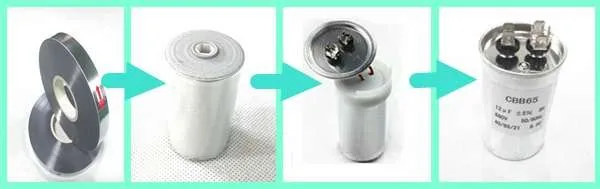

High Quality Cbb65 Sh Motor Running Capacitor Process:

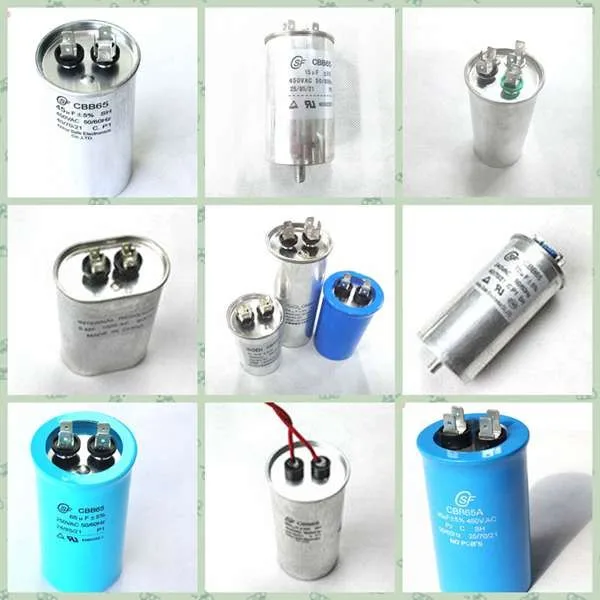

Different kinds of High Quality SH Motor Running Oil Capacitor CBB65 :


The usage of High Quality Motor Running Capacitor CBB65:


Cbb65 Sh Running Capacitor Cetificates:

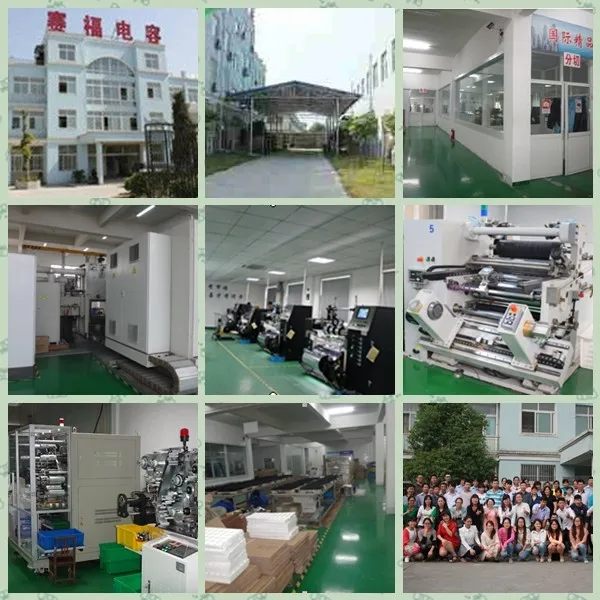

Our Oil Capacitor Factory:
